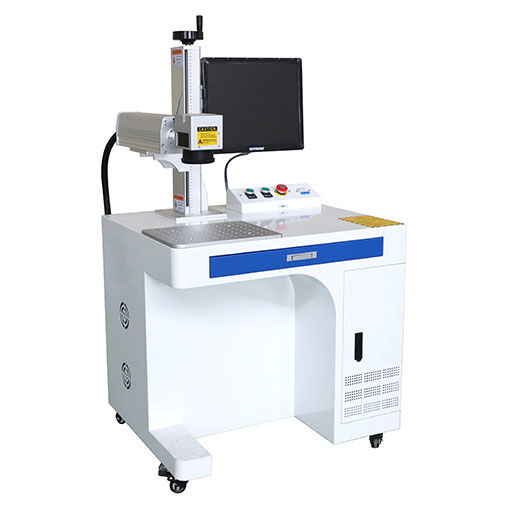

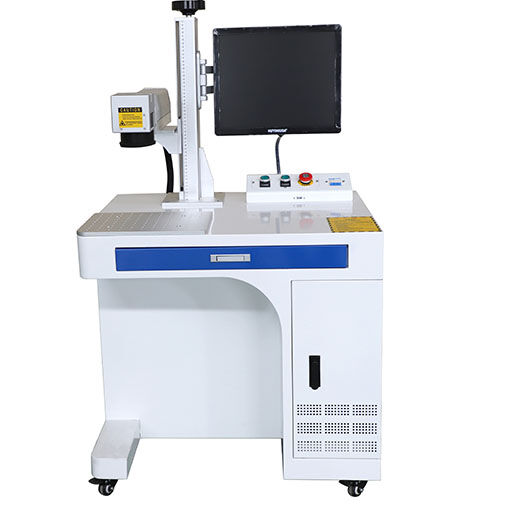

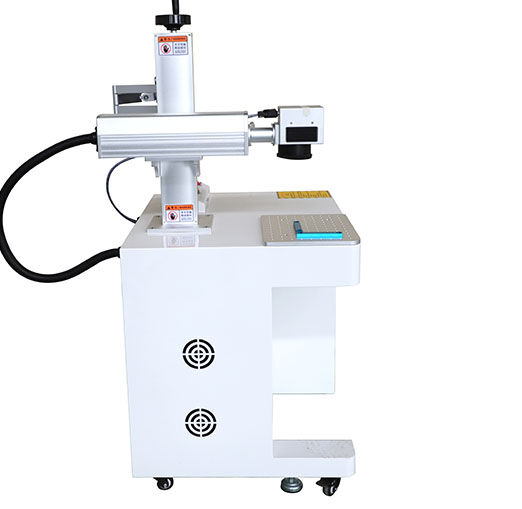

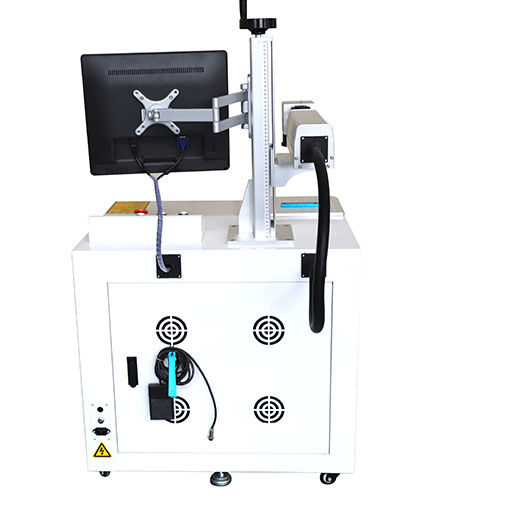

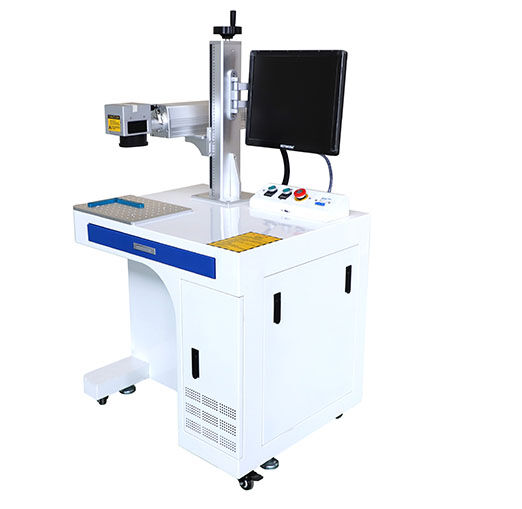

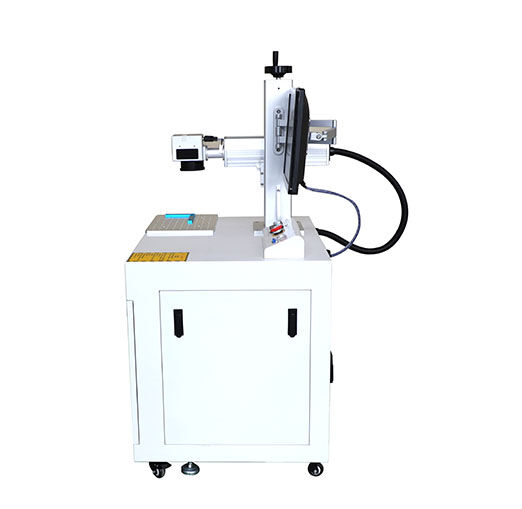

Fiber laser marking machine
SEND
E-mail

PRODUCT DETAILS

Main components

The Europe CE standard production

Marking area: 110*110/200*200/ 300*300 mm

Laser type: fiber laser source 30 Raycus laser source

Shengketai brand galvo head.

F-theta lens: Shengketai brand

Control system: Original Beijing JCZ control system, EZCAD software

Supported Photoshop, Coral draw and format AI, PLT, DXF, BMP, DST, DWG, DXP etc.

Computer: Computer with WIN7 English system

Working table: working plate

Protective glasses

Outside red pointer


Portable Fiber Laser

Optical fiber laser integrated structure, no optical pollution, no power of the coupling loss, compact structure compact, air cooling, one machine two function.


Excellent beam quality

The optical fiber laser is the medium mixed yb double-clad fiber, resonant cavity length, so the beam quality is very good, M2 value is 1.1, the output flare diameter can achieve 10 microns.

Excellent beam quality to ensure that optical fiber laser marking machine in a variety of material satisfying marking effects, widely applied in most metal marking industries (such as brass, titanium, steel, iron, aluminum and so on) and non metal materials like cloth, fabric, PVC, MDF, leather, acrylic, plastic and etc.

Laser long service life

PT-F series optical fiber laser marking machine use 1064 nm laser diode as the sources are used to pump, the average working hours can up to 100,000 hours.

Small and exquisite Volume , applicable in the bad environment

Optical fiber surface area/volume ratio is high, also good cooling effect, no need huge water cooling system, just simple air cooling, can be running in bad conditions, such as high impact, high vibration, high temperature, dirt under the conditions of the normal operation.

ree maintenance operation

Optical fiber laser no need for any maintenance (not including adjust or clean lens)

Light path and galvo scanner

The optical system: 1064 nm based on the high precision, vibrating mirror reflection focusing system.

Laser correction: choose red visible laser collimator's systems instructions axis position, indicating light and laser coaxial, in the process to tracing the function of the instructions and timely and accurate registration.

Galvo mirror is set to track operation of the laser executive mechanism, and it mainly consists of high accuracy servo motor, motor driven plate, mirror, F-θ lens and dc supply of power.


Computer control system

Computer with WIN7 operating system in English


Special marking software

Marking software in WINDOWS interface,English operating system, compatible with Photoshop, CORELDRAW, AUTOCAD and so on many kinds of drawing software:time date, bar code, serial number, mark, output in English, graphics, all kinds of bar code, Qr code, etc. Word stock the function is all ready, 200 kinds of fonts, can customize wired font, creating one of the proprietary dictionaries.


Applicable industry and material:

Applicable materials

Many type of metals: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass etc

Alloy and metal oxides: Anodized Aluminum

Some non-metallic materials & Special surface treatment: silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.


Applicable Industry

Electrical Engineering and Electrical part and component

Mobile (Cover, battery, keyboard, IPhone Case)

Jewellery(Ring, pedant, bracelet), eyeglass, clocks and craft

Building materials,PVC pipe

Car motor car spare part, Instrument and meters and cutting tool

plastic case,aviation and aerospace,

military product,hardware fitting and accessory,sanitary appliance

food and beverage ,Medicine package and medical instrument,solar Pv industry


After sales Service

1.24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.

2.Three-year warranty is provided.

3.Professional staff for installation and training if needed.

4.Spare parts are supplying on time or doing some inventory if promising certain sales volume.

5.Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.

6.If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.


Machine Parameters

Technology index

PT-F30

Laser parameters

optical maser

20/30/50w Raycus

Laser wavelength

1064nm

Average output power

30

Whether or not to bring the light isolation

bring

Modulation frequency range

20kHz~80kHz

Galvo parameters

Maximum speed

7000mm/s

resolution

0.001mm

Reposition precision

±0.003mm

Optical output characteristics

Marking area

110*110mm(optional)

Minimum line width

0.01mm

Minimum height of characters

0.2mm

Cooling system

Cooling way

Air cooling

System properties

Laser power supply

0.8KW/AC220V/50Hz±10%

Manual working table stroke

Movements itinerary 285 mm (desktop type)

Environmental requirements

0 ~ 35 ° C, 90% or humidity

Packing size

79cm*72cm*84cm

weight

Net weight

96kg

Gross weight

120kg


Spare parts with machine


  No.

Equipment spare parts

Unit

Quantity

1

Remote control switch

Pcs

1

2

Dimmer piece

        Pcs

1

3

Protective glasses

        Pair

1


Technical documents

No.

Material name

quantity

remarks

1

The instruction for use, maintenance instruction

2 Copies

Contain equipment operation, installation and maintenance of the content

2

Spare parts

1 Copy

Indicate the name of the parts, model and manufacturers

3

Electronic archives material (CD)

1Pcs

Contains instructions, equipment components assembly decomposition, spare parts, wearing parts and map the component list, equipment program 1 set of software.


Three Most Important Components of Fiber Laser Marking Machine





Laser Source


20/30/50w Raycus fiber laser source

working life more than 100,000 hours

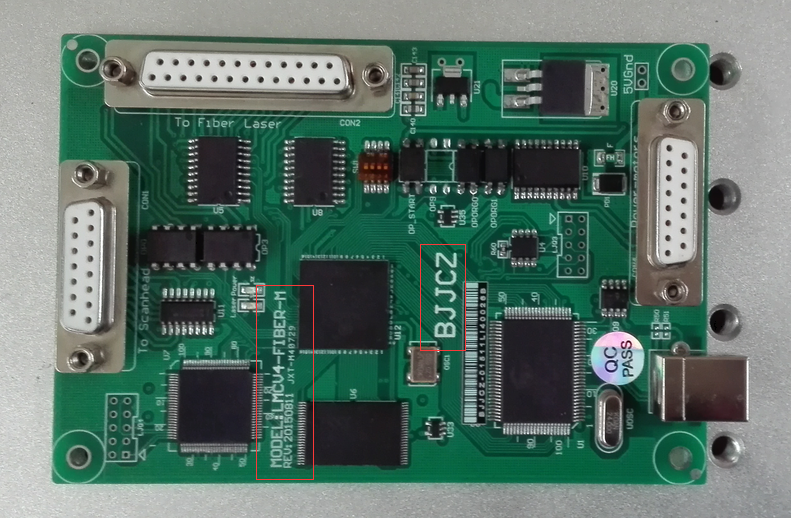

Control Board


Original JCZ Brand control board

Ezcad control software

High Speed Galvo Head


Shengketai galvo head

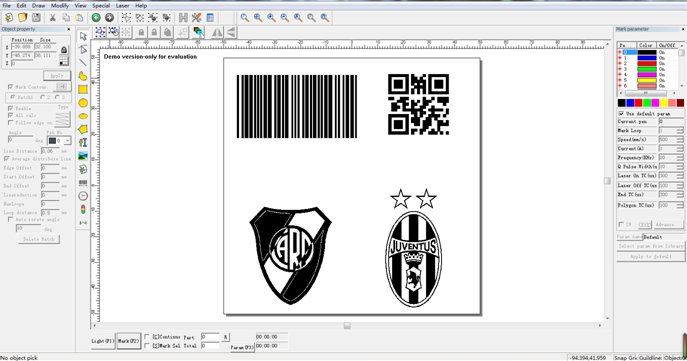

Software of EZCAD




Marking samples

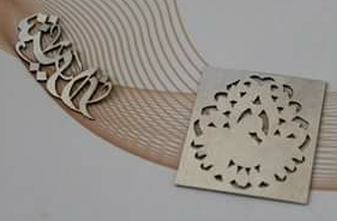

Gold cutting

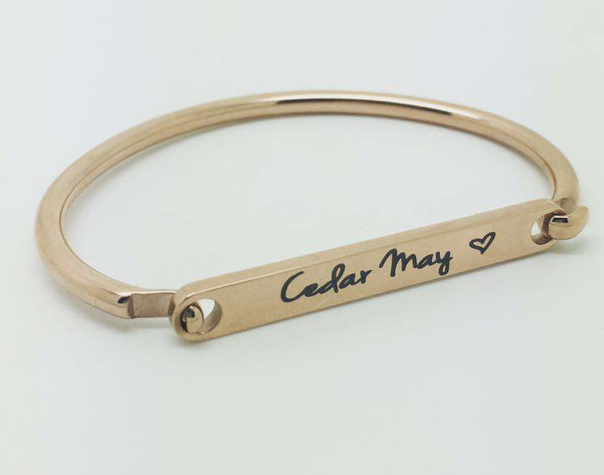

Gold marking

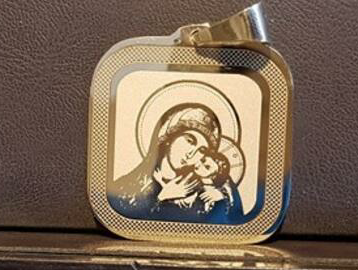

Silver marking

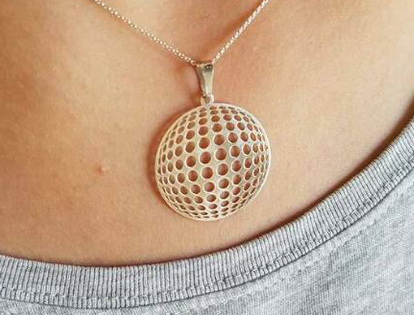

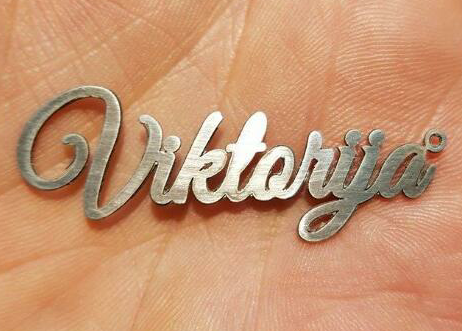

Silver cutting

Silver cutting

Stainless steel

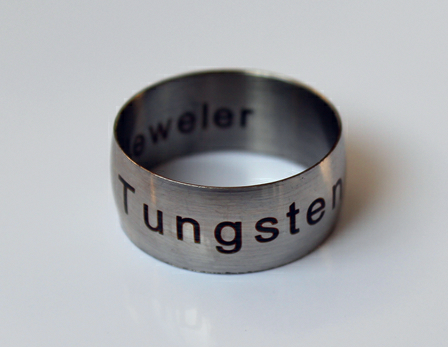

Rings outside marking

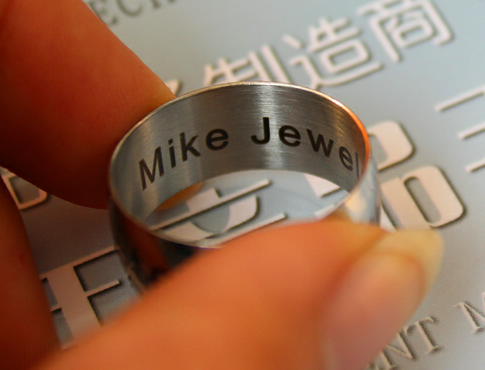

Rings inside marking

silver cutting
