Metal laser cutting machine 3015G

Laser cutting machine body

The assembly line production process is divided into five processes:

 Siemens robot welding, quenching, shot blasting, milling machine, and vertical milling.

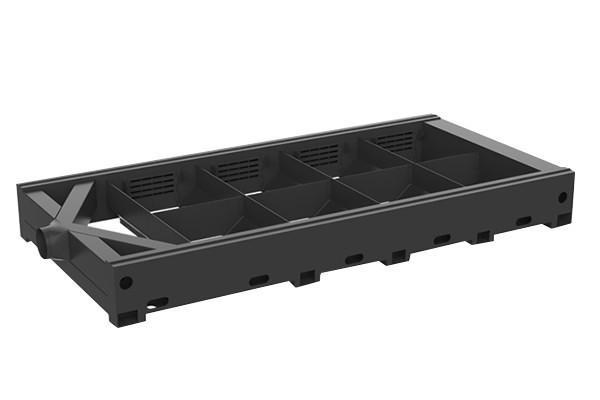

2.png  HEAVY DUTY MACHINE BED


10mm plate welded heavy duty machine bed, the heaviest machine bed on the market, more stable running, higher running speed and higher cutting precision.








2.png THE LATEST GENERATION AVIATION ALUMINUM BEAM


The new generation of beams developed from domestic aviation materials in China have the advantages of high hardness, high strength and low weight, which can ensure stable and fast work during mechanical operation. Greatly improved work efficiency

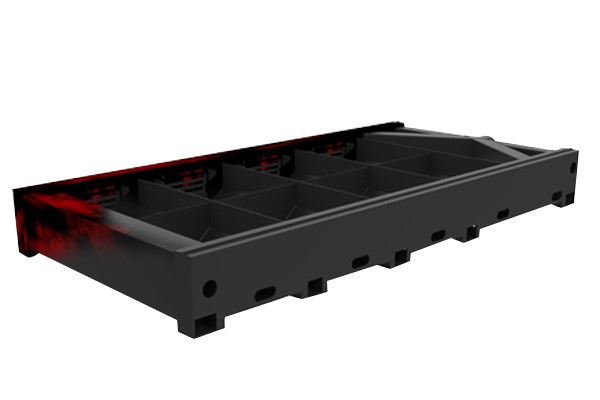

2.pngINTELLIGENT INDUCTION, SEGMENTED DUST REMOVAL


Each section of the bed is equipped with a smoke exhaust device, which can be turned on when the cutting head moves 360-degree intelligent surround, spiral negative pressure dust removal, comprehensive smoke-free cutting.

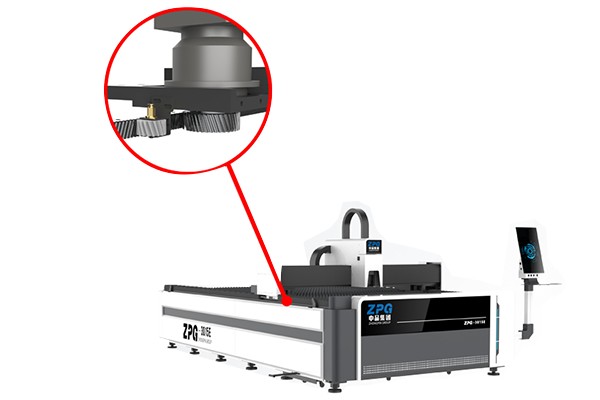

2.pngAUTOMATIC LUBRICATION SYSTEM


Humanized design, users can set automatic lubrication time according to their working capacity, perform regular maintenance on the guide rails, which greatly reduces labor maintenance costs and guarantees the operating accuracy of the equipment effectively.

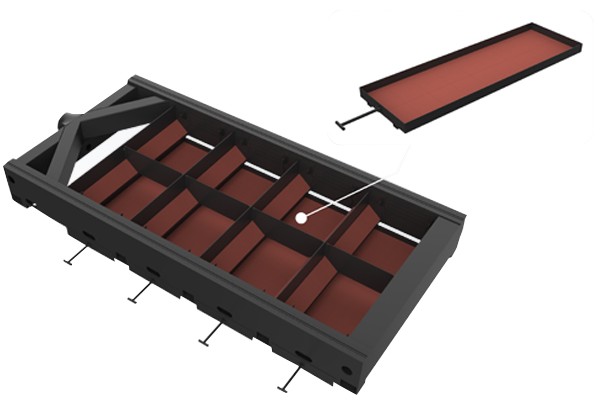

2.png HIGHER POWER CONFIGURATION--REFRACTORY BRICKS


When matching high power, we equip refractory bricks, which have poor thermal conductivity and can prevent the bed from deforming due to heat, thereby increasing the service life of the equipment.



Container Video

Application Industry


Metalworking Industry, Locomotive Manufacturing Industry, Machinery Industry, Household Appliance Manufacturing Industry, Hardware Tool Processing Industry, Decorative Advertising Industry and other machinery manufacturing and processing industries.




Cutting Samples




Product Parameters


E series laser cutting machineG3015G4015G6015
Rated sheet size (mm)X（mm）150020002000
Y (mm)300040006000
Machine stroke (mm)X (mm)153020302030
Y (mm)305040506050
Z (mm)110110110
X/Y axis maximum positioning speed808080
Linkage maximum positioning speed (m/min)130130130
Maximum acceleration1.2G1.2G1.2G
Positioning accuracy (mm/m)0.030.030.03
Repeat positioning accuracy (mm)0.010.010.01
Operation terminalLaser dedicated system and laser professional function handheld
