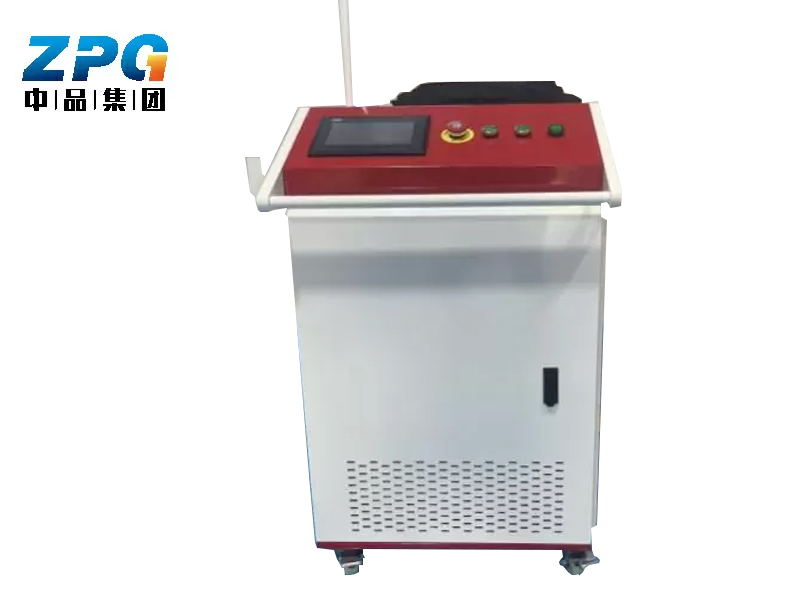

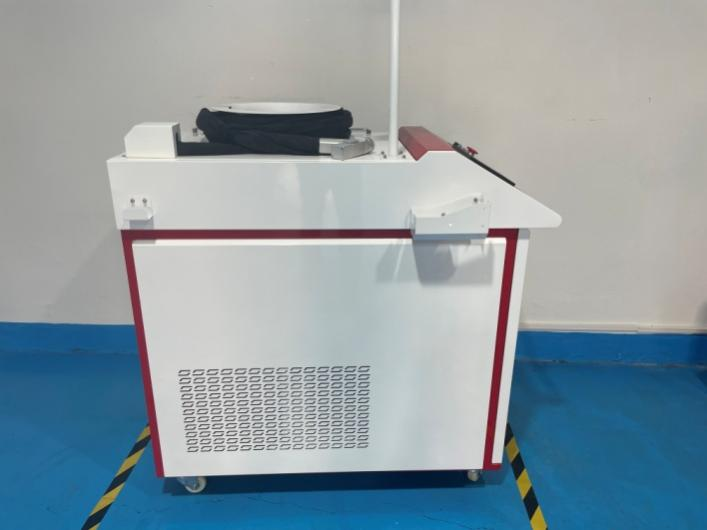

ZPG Laser cleaning machine


Laser welding machine/Laser cleaning machine /Laser cutting machine


The welding is convenient, the welding seam is beautiful, and the labor cost is low

Cleaning does not damage the material, and can clean paint, stains and rust

It is convenient and quick to cut some thin metal plates, which will be more convenient in actual operation








INTELLIGENT OPERATING SYSTEM


Adopt touch screen design, easy and quick to click and set, with real-time fault reading, feedback and alarm functions


There is a process parameter library, which can realize the rapid storage and recall of cleaning process parameters


Remote controller at the welder side for multi-parameters adjustmentSave time and effort, easy to operate.




AU3TECH LASER

WELDING & CLEANING &CUTTINGHEAD HEAD


Three operating heads can be replaced at any time,and three different functions can be realized by replacingonly a few parts, which is convenient,fast and safe


Welding&Cleaning&Cutting Sample



Configuration


Configuration list
ModelZP handheld laser welding machine&laser cleaning machine&laser cutting machine
Laser deviceRFL-C1000W( Special for welding )
Handheld laser headHANWEI LASER
Controlling systemHANWEI LASER
Laser power1000W 1500W 2000W 3000w
Welding speed range0-120mm/s
Welding thicknessAluminum,brass:0-2mm,Stainless steel,carbon steel:0-4mm
Welding gap≤0.2mm
Fiber lengthStandard 15m,maximum 30m
Water coolingSpecial for handheld welding
Cleaning parameterscleaning width : 0-80mm
Focus height : 600mm
Cutting thickness0-6mm


Technical Parameters


MaterialThickness(MM)Power%Up-slope (s)Down-slope (s)Out-light Blowing (s)Close-light Blowing(s)NoteSplicing gap
Stainless steel0.5300.300.30.3The welding torch pulls at a uniform speed and should not be too fast to ensure penetration.1/5 of material thickness
0.835
145
1.560
1.860
270
380
3.590
4100
Carbon steel0.5300.300.30.3The welding torch pulls at a uniform speed and should not be too fast to ensure penetration.1/5 of material thickness
145
1.560
270
3900.8
490
Aluminium alloy0.5700.300.30.3Welding gun pulling speed is slow, pay attention to reflection1/5 of material thickness
180
290
Brass0.5700.300.30.3Welding gun pulling speed is slow, pay attention to reflection1/5 of material thickness
180
290
Square tube welding(CS&SS)130000.30.3Welding gun pulling speed is fast,avoid weld penetration1/5 of material thickness
Round tube welding(CS&SS)390000.30.3The rotation needs to be slower,the longer tube needs the center frame support1/5 of material thickness
plate &pipe welding(CS&SS)390000.30.3The rotation needs to be slower,,  the longer tub1/5 of material thickness
